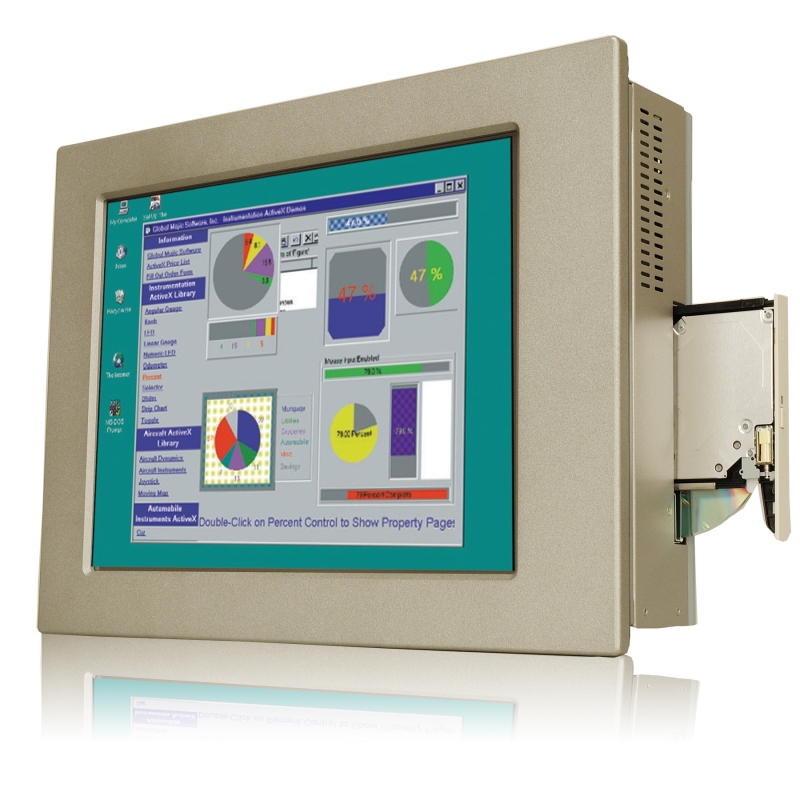

15" Touch Panel PC PPC-5150A - Core i3/i5/Pentium
View larger
15" Touch Panel PC PPC-5150A - Core i3/i5/Pentium
15" Touch Panel PC iEi PPC series, Processor Intel Pentium or Intel Core i3/i5, Ram 4GB, One slim type CD-ROM drive bay, Optional 1 x PCI or 1 x PCIe
PPC-5150A-H61
Features
| Manufacturer | iEi |
| Series | PPC |
| Screen size | 15" |
| Screen Ratio | 4/3 |
| Max Resolution | 1024 x 768 |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 800:1 |
| LCD Color | 16.2 M |
| Viewing Angle | 150/160 |
| Touch Screen | Yes |
| Touchscreen Technology | Resistive |
| Front Panel | Aluminium |
| Front face protection | IP66 |
| Fanless | No |
| CPU | Intel Pentium G6xxT Intel Core i3 2xxxT Intel Core i5 2xxxT |
| Processor Core | 2 |
| Processor Frequency | 2.2 GHz (Pentium) 2.5 GHz (Core i3) 2.7 GHz (Core i5) |
| Maximum RAM | 16 GB |
| Ram Type | DDR3 SO-DIMM |
| Storage | Compact Flash mSATA HDD SSD |
| OS Supported | Windows 7 Windows 8.1 Windows 10 |
| Ethernet Port(s) | 2 |
| RS-232 Port(s) | 4 |
| RS-232/422/485 Port(s) | 1 |
| USB 2.0 Port(s) | 4 |
| USB 3.0 Port(s) | 2 |
| Sortie(s) VGA | 1 |
| Audio Output | Yes |
| Other Port(s) | 1 x Mic-in 2 x SFP fiber LAN |
| PCI Expansion(s) | 1 (with accessory) |
| PCI Express Expansion(s) | 1 (with accessory) |
| Mini PCI-E Full-Size Expansion(s) | 1 |
| Power Input | 18~36 VDC 90VAC~264VAC |
| Operating Temperature | -20 ~ 60°C |
| VESA Mounting | Yes |
| RoHS | Yes |
