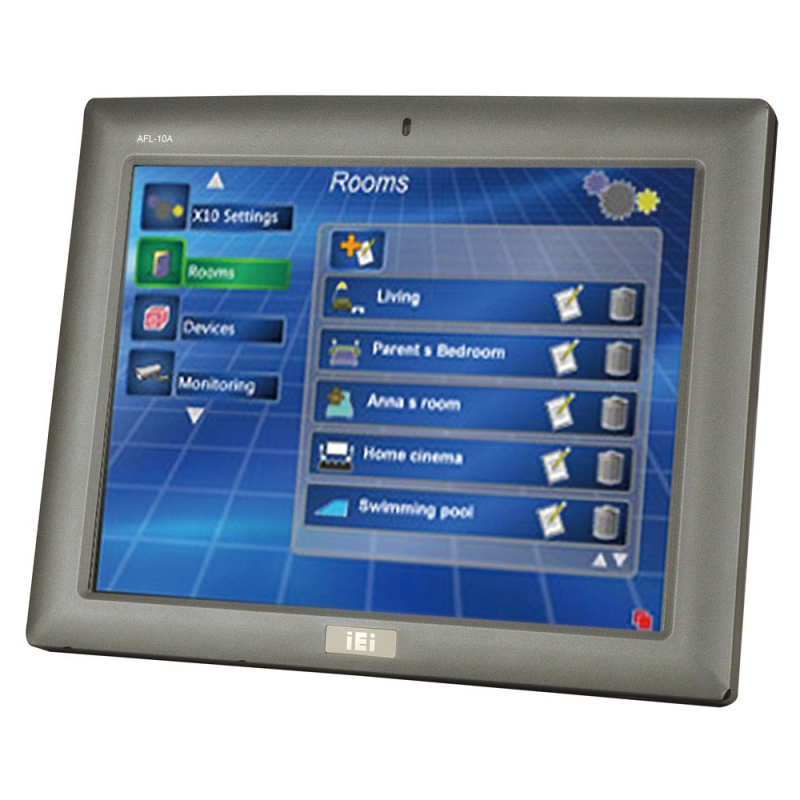

10.4" Touch Panel PC AFL-10A - LX 800
View larger
10.4" Touch Panel PC AFL-10A - LX 800
10.4" Torch Panel PC AFL Series, Processor AMD Geode LX 800 500 MHz, Ram 512MB, Windows Embedded or WinCE on Compact Falsh
AFL-10A-LX/R/512-R22
Features
| Manufacturer | iEi |
| Series | AFOLUX |
| Max Resolution | 800 x 600 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 700:1 |
| LCD Color | 262K |
| Viewing Angle | 160/140 |
| Touch Screen | Yes (Resistive) |
| Fanless | Yes |
| CPU | AMD Geode LX 800 500Mhz |
| RAM | 512 MB (1 GB Max.) |
| Storage | Compact Flash |
| OS Supported | Windows Embedded Standard 2009 WinCE 5.0 |
| Ports | 1 x RS-232 COM Port 1 x RS-232/422/485 COM Port 2 x RJ-45 10/100Mbps LAN 2 x USB 2.0 |
| Wifi | Wireless LAN 802.11 b/g Module |
| Speaker | Yes |
| Power Requirement | 12 VDC |
| Power Adapter 100-250V | Yes |
| Power consumption | 25 W |
| Operating Temperature | 0°C ~ 50°C |
| VESA Mounting | Yes |
| RoHS | Yes |
