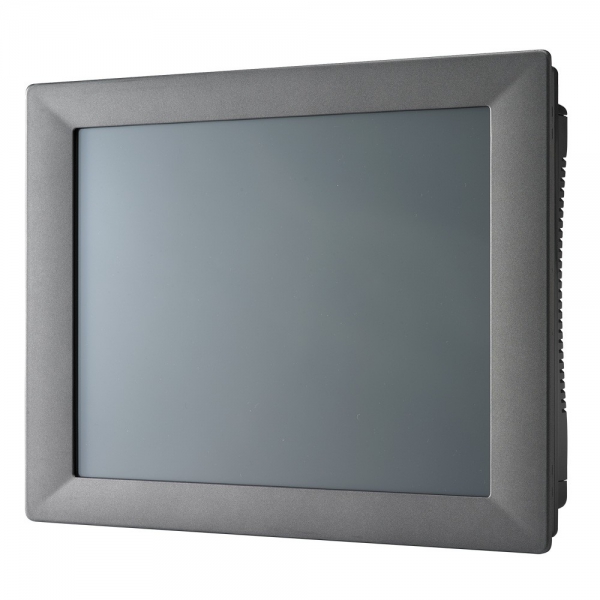

12" Touch Panel PC TPC-1271H - Atom D525

View larger

12" Touch Panel PC TPC Series, Processor Intel Atom D525 1.8 GHz, Ram 4GB, 1 x PCI-E

Reference: TPC-1271H-D3AE

Manufacturer	Advantech
Series	TPC
Screen size	12"
Screen Ratio	4/3
Max Resolution	800 x 600
Brightness	450 cd/m2
Contrast Ratio	700:1
LCD Color	262 k
Viewing Angle	160/140
Touch Screen	Yes
Touchscreen Technology	Resistive
Front Panel	Aluminium
Front face protection	IP65
Fanless	Yes
CPU	Intel Atom D525
Processor Core	2
Processor Frequency	1.8 GHz
Maximum RAM	4 GB
Ram Type	DDR3 SO-DIMM
Storage	Compact Flash HDD SSD
OS Supported	Windows XP Windows 7 Linux Android
Ethernet Port(s)	2
RS-232 Port(s)	2
RS-422/485 Port(s)	1
USB 2.0 Port(s)	2
Other Port(s)	1 x PS/2 8 x DI/DO
PCI Express Expansion(s)	1
Mini PCI-E Full-Size Expansion(s)	1
Speaker	No
Power Input	10 ~ 29 VDC
Power Adapter 100-250V	No
Power consumption	20 W
Operating Temperature	0 ~ 50°C
VESA Mounting	Yes (with accessory)
RoHS	Yes
Certification	BSMI, CCC, CE, FCC Class A, UL
