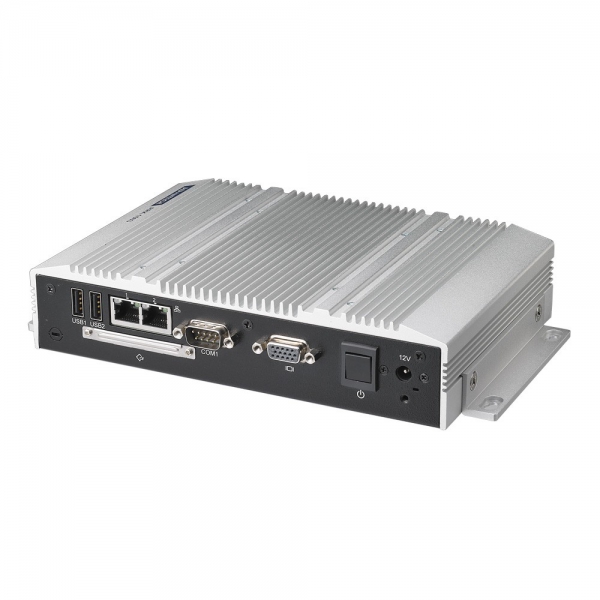

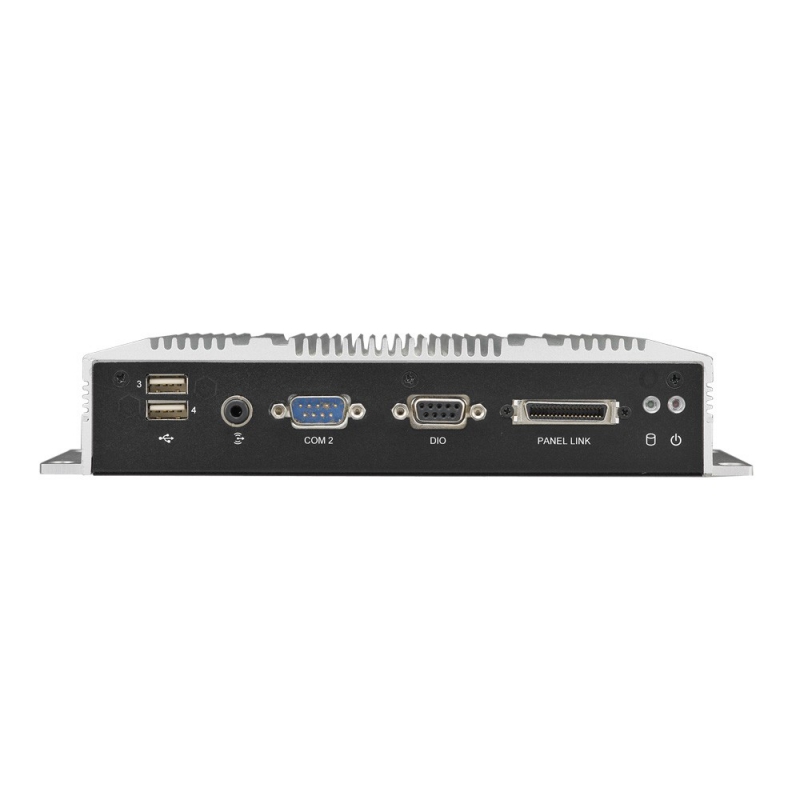

Industrial Fanless PC ARK-1503 Atom D525
View larger
Industrial Fanless PC ARK-1503 Atom D525
Industrial Fanless PC ARK-1000 Series, Processor Intel Atom D525 1.8GHz, 1GB to 4GB Ram, Windows XP Pro SP3 or Windows 7 Pro or Windows Embedded on Hard Disk or SSD or Compact Flash
ARK-1503F-D6A1E
Features
| Manufacturer | Advantech |
| Series | ARK-1000 |
| Fanless | Yes |
| CPU | Intel Atom D525 1.8GHz |
| RAM | 1 GB / 2 GB / 4 GB |
| Storage | HDD SSD Compact Flash |
| OS Supported | Windows XP Pro SP3 Windows Embedded Standard 2009 Windows 7 Pro 32 Bit Windows 7 Pro 64 Bit |
| Ports | 2 x RJ-45 10/100/1000Mbps LAN 1 x RS232 1 x RS232/422/485 4 x USB 1 x Line-out 1 DB36 (LVDS) |
| Expansion | 1 x full-size Mini PCIe |
| Power Requirement | 12 VDC |
| Power consumption | 17 W Max. |
| Operating Temperature | -20 ~ 60° C (CF/SSD) 0 ~ 45°C (HDD) |
| Mounting | Wall-Mounting |
| RoHS | Yes |
