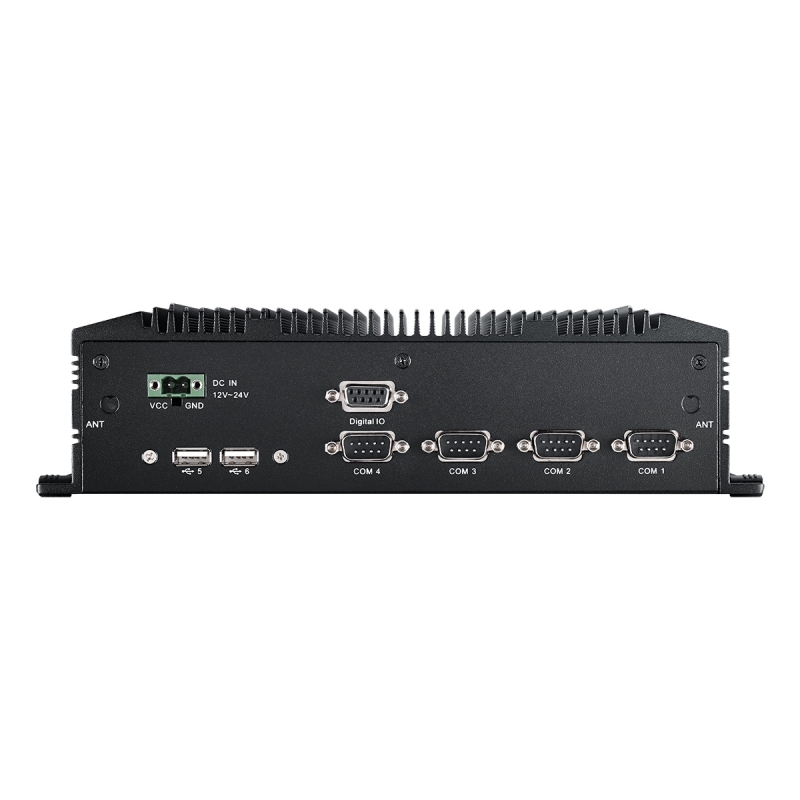

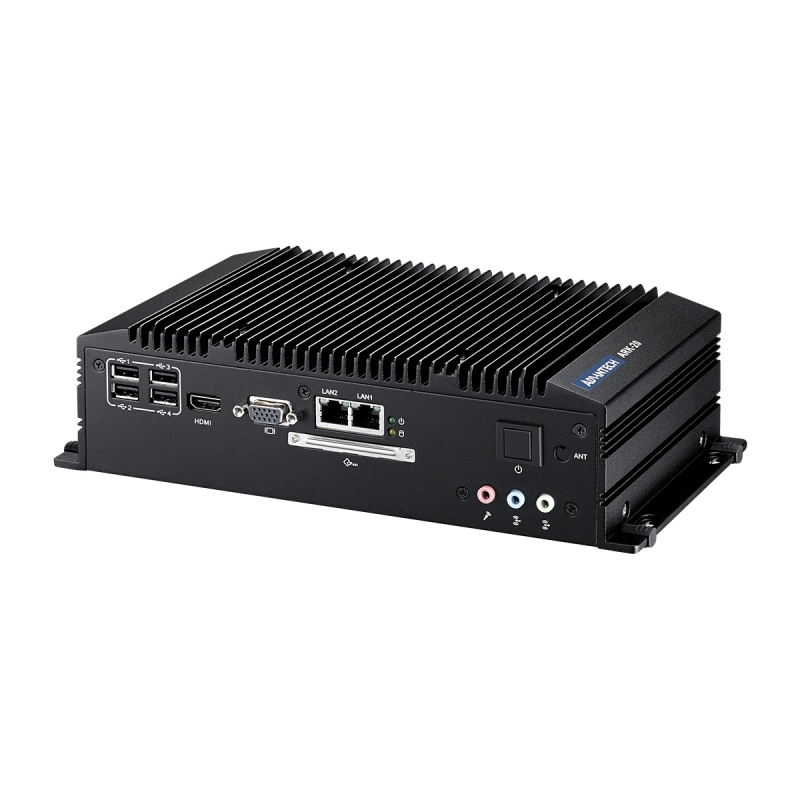

Industrial Fanless PC ARK-20 - Atom D2550
View larger
Industrial Fanless PC ARK-20 - Atom D2550
Industrial Fanless PC Advantech ARK-2000 Series, Processor Intel Atom D2550 Dual Core 1.86GHz, Ram 2Gb, 500Gb Hard Drive, Digital IO, Optional Wifi/3G
ARK-20-S8A1E
Features
| Manufacturer | Advantech |
| Series | ARK |
| Fanless | Yes |
| CPU | Intel Atom D2550 |
| Processor Core | 2 |
| Processor Frequency | 1.86 GHz |
| Maximum RAM | 2 GB |
| Ram Type | DDR3 SO-DIMM |
| Storage | Compact Flash HDD |
| OS Supported | Windows XP Windows 7 Linux |
| Ethernet Port(s) | 2 |
| RS-232 Port(s) | 3 |
| RS-232/422/485 Port(s) | 1 |
| USB 2.0 Port(s) | 6 |
| HDMI Output | 1 |
| Sortie(s) VGA | 1 |
| Audio Output | Yes |
| Other Port(s) | 1 x Line-in 1 x Mic-in |
| Mini PCI-E Full-Size Expansion(s) | 1 |
| Integrated IO | Yes |
| Integrated Wifi | Yes (optional) |
| Integrated 3G | Yes (optional) |
| Power Input | 12 ~ 24 VDC |
| Power Adapter 100-250V | Yes |
| Power consumption | 11 W |
| Operating Temperature | 0 ~ 45°C |
| Wall Mounting | Yes |
| DIN Rail Mounting | Yes (with accessory) |
| RoHS | Yes |
| Certification | CE/FCC Class A, CCC, BSMI, UL |
