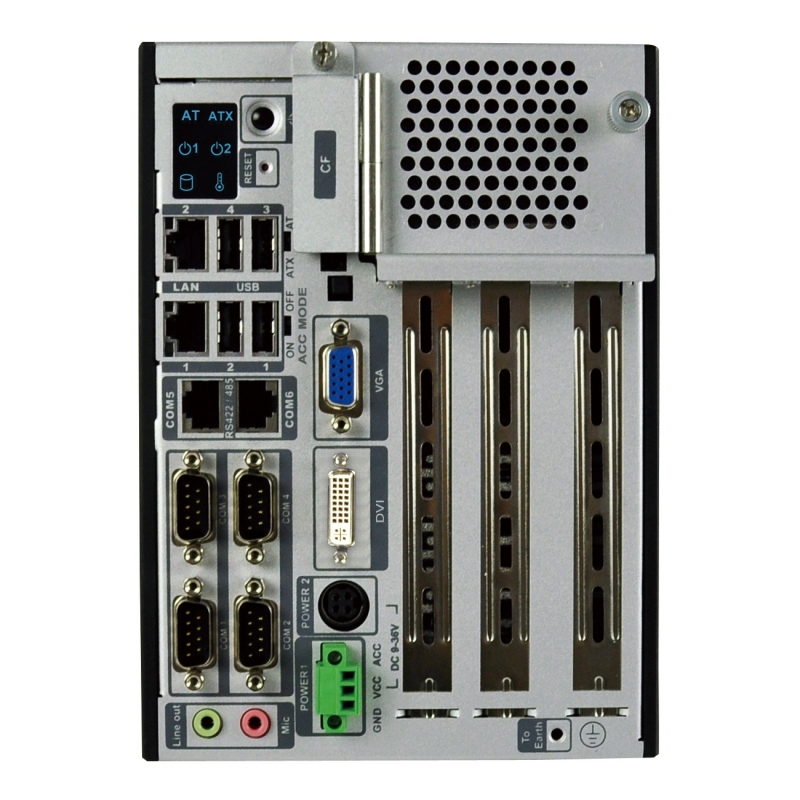

Industrial Fanless PC TANK-820-H61 - Core i3/i5/Pentium
View larger
Industrial Fanless PC TANK-820-H61 - Core i3/i5/Pentium
Industrial Fanless PC iEi TANK Series, Processor Intel Pentium or Intel Core i3/i5, Ram 2GB, Digital IO, 2 PCI et 1 PCIe or 1 PCI et 2 PCIe
TANK-820-H61
Features
| Manufacturer | iEi |
| Series | TANK |
| Fanless | Yes |
| CPU | Intel Pentium G6xxT Intel Core i3 2xxxT Intel Core i5 2xxxT |
| Processor Core | 2 |
| Processor Frequency | 2.2 GHz (Pentium) 2.5 GHz (Core i3) 2.7 GHz (Core i5) |
| Maximum RAM | 8 GB |
| Ram Type | DDR3 SO-DIMM |
| Storage | Compact Flash HDD SSD |
| OS Supported | Windows XP Windows 7 Linux |
| Ethernet Port(s) | 2 |
| RS-232 Port(s) | 4 |
| RS-422/485 Port(s) | 2 |
| USB 2.0 Port(s) | 4 |
| USB 3.0 Port(s) | 2 |
| DVI Output | 1 |
| Sortie(s) VGA | 1 |
| Audio Output | Yes |
| Other Port(s) | 1 x Mic-in |
| PCI Expansion(s) | 2 |
| PCI Express Expansion(s) | 2 |
| PCI Express x1 Expansion(s) | 1 |
| PCI Express x8 Expansion(s) | 1 |
| Integrated IO | Yes |
| Power Input | 9 ~ 36 VDC |
| Power Adapter 100-250V | Yes |
| Operating Temperature | -20 ~ 60°C |
| Wall Mounting | Yes |
| RoHS | Yes |
| Certification | CE / FCC |
